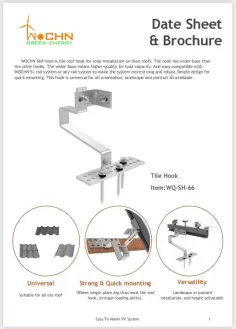

Tile Roof Hook 66# Solar Mounting

Features Components Technical Data Video Referencia

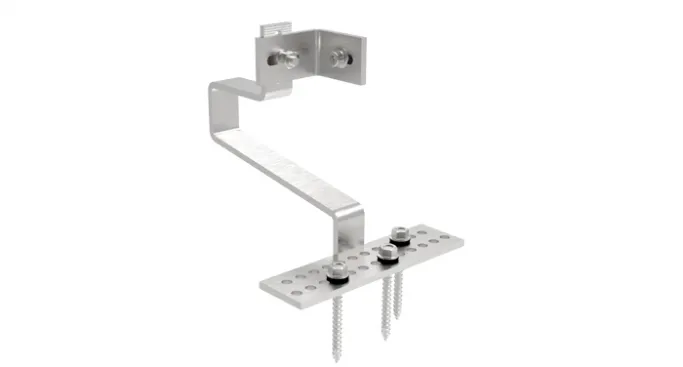

WOCHN 66# hook is tile roof hook for solar installation on tiled roofs. It's suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook has wider base than the other hooks. The wider base means higher-quality for load capacity. And easy compatible with WOCHN 5L rail system or any rail system to make the system more strong and robust.Simple design for quick mounting. This hook is universal for all orientation, landscape and portrait all available.The 66# tiled roof hook is made of high-quality stainless steel. This steel type has a longer lifespan,is highly resistant to corrosion.

Features

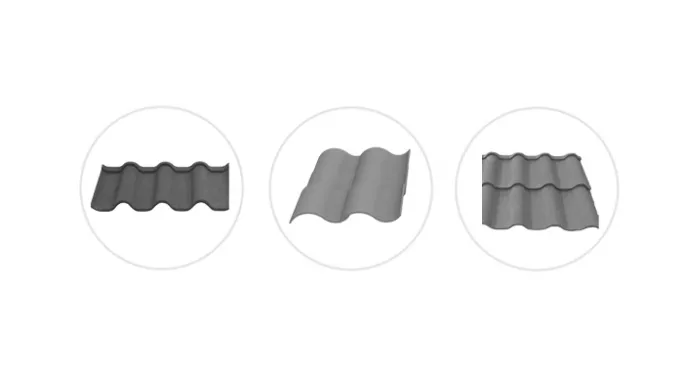

Universality

Universal for all tiled roofs, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile.

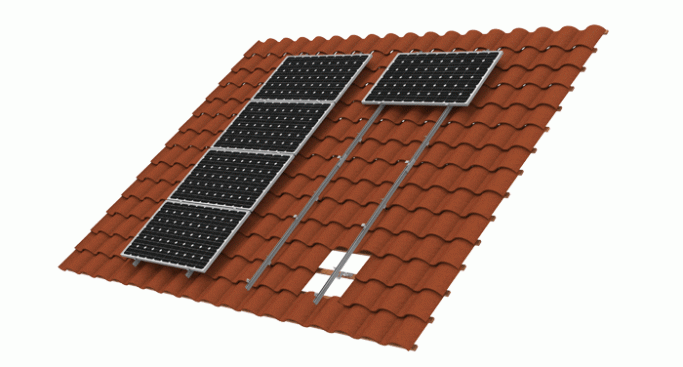

Versatility

Both landscape and portarit solar installation are workable, easy to adjust the layout depend on roof limited space.

Easy to adjust solar rail system height with range 0 to 50mm, flexibility to meet small adjustment to come to the tilt angles.

25 holes on the base plate for easy to find the roof substructures location and fixing.

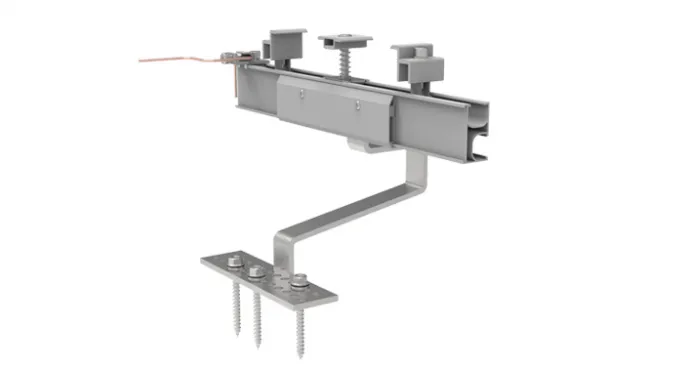

Strong & Quick Mounting

Made by stainless 304, highly anti-rust.

185mm wider base,higher big wind and snow load ability.

Easy compatible with WOCHN 5L rail system.

Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns.

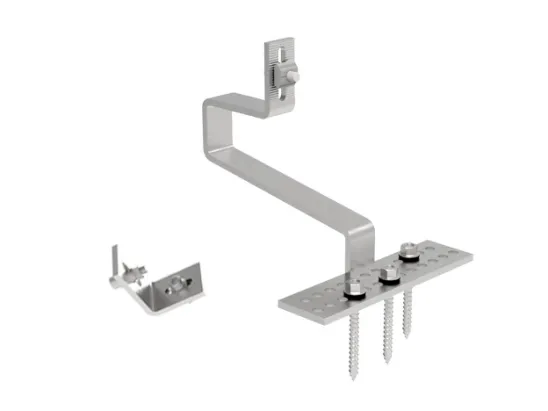

Components

Part Name	Quantity	Specification	Material
66# hook	1	185127171*6 mm	Stainless steel SUS304
Self driling screw	3	M6.3*80mm	Stainless steel
Nut Kits	1	5# rail nut kits	Aluminium and steel
L Stainless Angel ( Option)	1	60*70 mm	Stainless steel SUS304

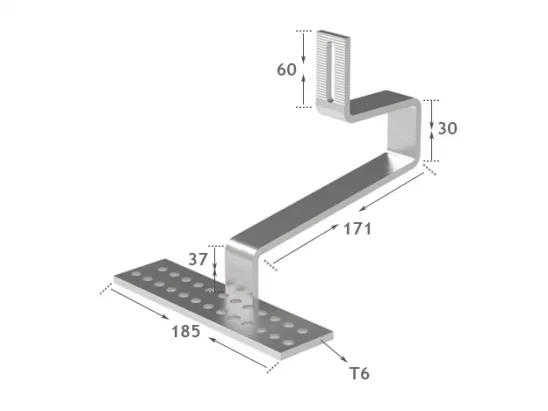

Technical Data

Product name	Tile roof hook 66# Mounting System
Application	Tile roof
Inclination	Any roof inclination
Material	Stainless SUS304
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
