    T Attachment Solar Mounting

Features Components Technical Data Video Referencia

WOCHN Universal T Attachment solar mounting system is designed for any type of trapeziod metal sheet roof. It is easy to adjust top width to makes it versatile for any trapezoid metal sheet. Side-mounted the screw on trapeziod metal sheet to prevent stagnant water and ensure longer lifespan of rooftop. The pre-installed four self-drilling screws for fast installation. Connect rail to achieve the high wind load and snow loading. It is more reliable and easier solar mounting system for pv-installation.

Features

Universal

Universal

Suitable for solar installation on all types trapezoid metal sheet roof.

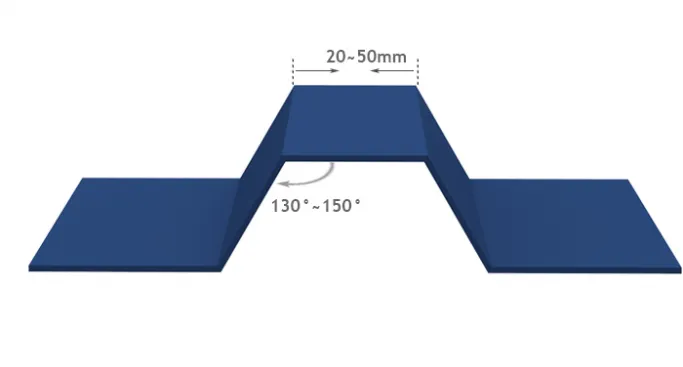

Trapezoid metal sheet types:

Easy Installation

Easy Installation

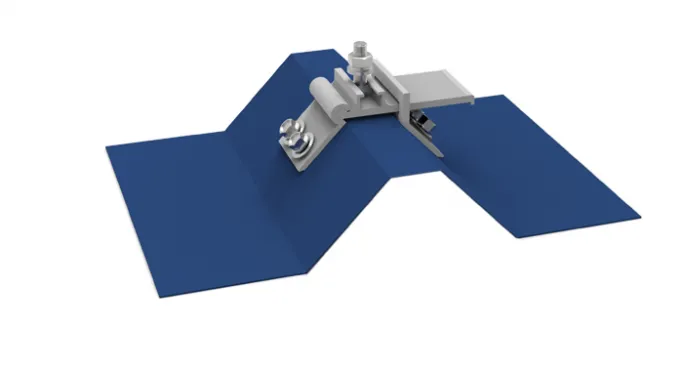

Easy to mount on trapezoid metal sheet, only need 4 self drilling screw.

Easy to adjust the width base on trapezoid metal sheet top width.

Flexibility

Flexibility

Easy to make stock to distribute thanks to universal usage.

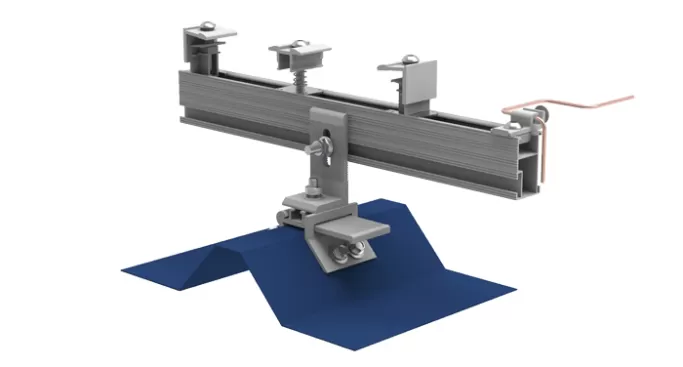

Could be used to connnect with rail system or install solar modules directly.

Components

Components
Part NameQuantitySpecificationMaterial
Clamp1
Anodized Aluminium 6005-T5
Side self-drilling screw4M6.3*30 mmSUS304

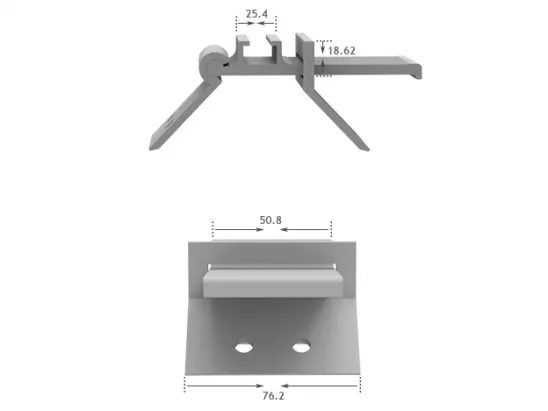

Technical Data

Technical Data
Product nameT Attachment
ApplicationTrapezoid Metal Sheet
InclinationAny inclination
MaterialAluminium Al6005-T5
FinishNature
PV moduleFramed or Unfreamed
Module sizeSmall and Big modules
Module orientationPortrait and Landscape
Module directionAny direction
Design wind loadingUp to 60m/s
Design snow loadingUp to 1 metre
Roof heightUp to 20 metre
Design StandardEN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Video

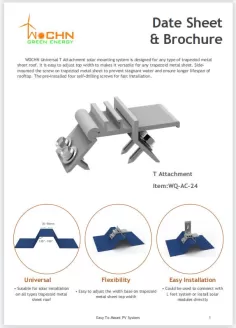

Descargas
