U MiniRail System Solar Mounting

Features Components Technical Data Video Referencia

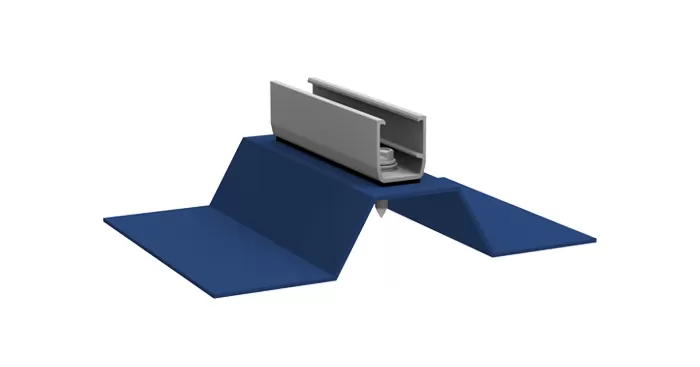

WOCHN U mini rail mounting system for solar installation has been specially developed for metal sheet roof, like trapezoidal sheet roof and corrugated iron roofs. It's a variant of Mini rail system and impresses with its universality and simplicity. The whole system consists only four components and easy to install. This system is workable for both portrait and landscape orientation. Watertight seal is dispalyed by using the four EPDM mat. Short rail system with pre-punched holes for quick mounting.

Features

Universal

Universal for solar installation on pitched roofs with trapezoidal sheet metal , sandwich panels roofs, corrugated iron roofs in different size.

Universal Mid Clamps and End Clamps used for different thickness Solar Modules.

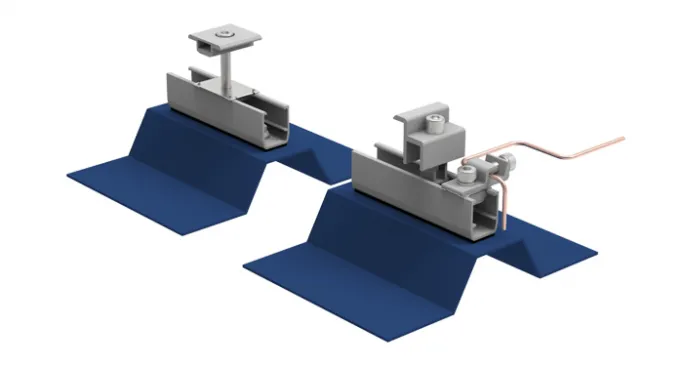

Quick Mounting

Only 4 components required.

Faster to handle short Mini Rail System compared with long Rail System.

Self-tapping screws used, no pre-drilling.

Self-adhesive EPDM mat pasted and self-tapping screws with sealing washers , double protection for weatherproof, no addition glue needed.

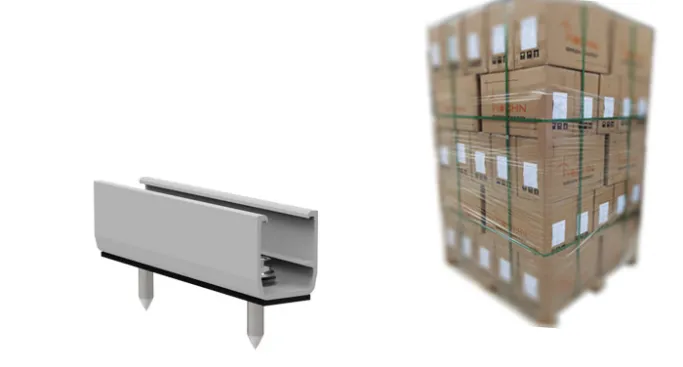

Easy and Cost-effective

Easy to transport and handle to roof top.

Easy to make fast installation.

Easy to make stock to distribute.

Easy to save logical cost, installation cost,labor cost.

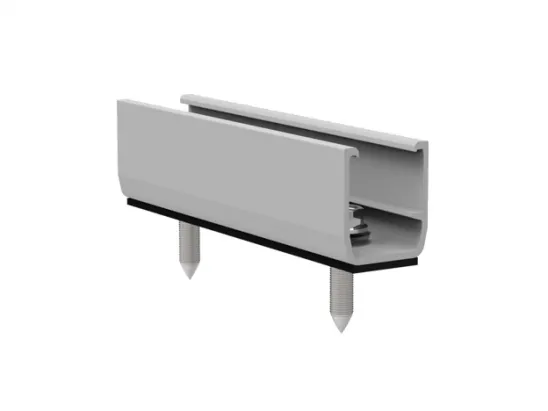

Components

Part Name	Quantity	Specification	Material
U Mini rail	1	L=150mm	Anodized Aluminium 6005-T5
Self driling screw	2	M6.3*25mm	SUS410
EPDM pad	2	26*40mm	EPDM

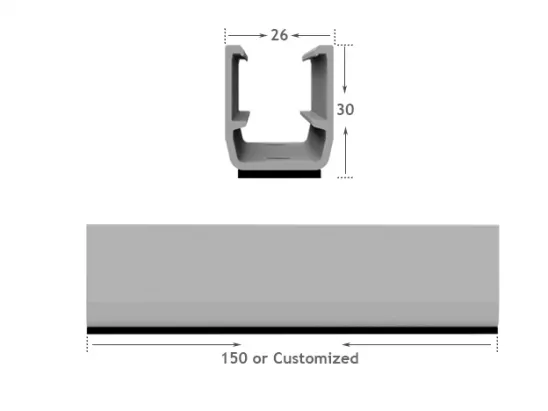

Technical Data

Product name	U MiniRail system
Application	Trapezoidal sheet metal, sandwich panels, corrugated sheet roofs
Inclination	Any roof inclination
Material	Stainless SUS304
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Video

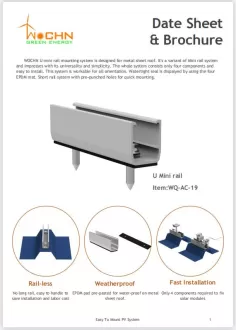

Descargas
