PAT Triangular Solar Mounting System

Features Technical Data Video Referencia

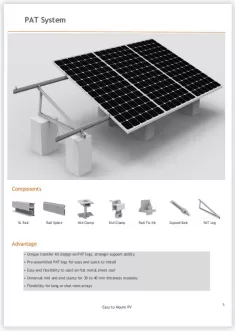

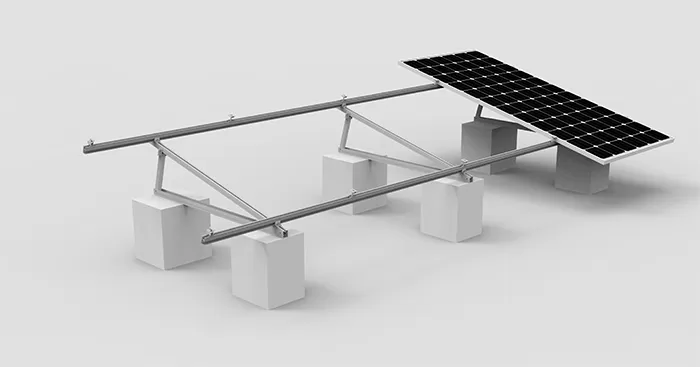

WOCHN PAT solar mount system is triangle system for portriat solar installation on flat roof. It is simple and fast installation of PV modules on flat roofs and surface. The triangular design provides a stable, robust and sturdy base for the system. It's versatile of the application which ballasted with a concrete foundation or flat metal sheet roof.The tilt angle according to require to design. It also resisting the extreme wind load and snow forces experienced over a rooftop lifespan. And easy to connect with metal sheet attachment with long U base, flexibility to make tilt and different direction on flat metal sheet roof. All component in the system is made with aluminium and stainless steel to ensure complete corrosion resistance and longer lifespan.

Features

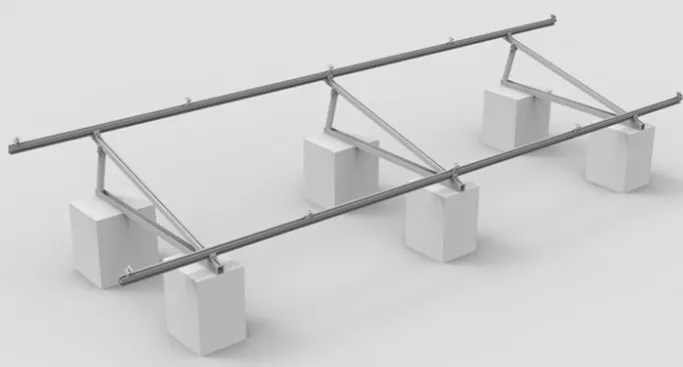

Universal

WOCHN APAT Triangular Mount System fit multitude of different flat concrete roof or small ground site PV installations with concrete foundations, the professional design terminate future temporary site fabricating structures of using aluminum profile.

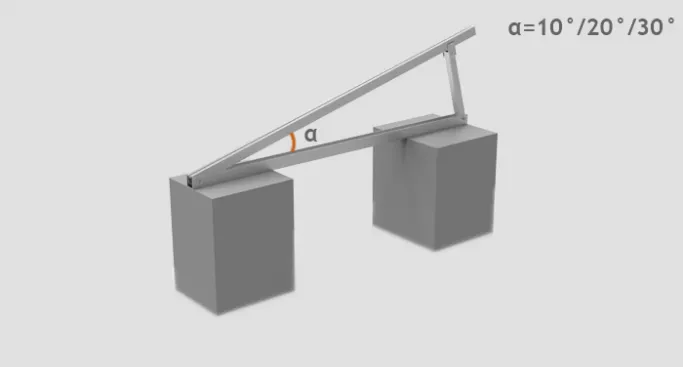

Fixed Inclination Angle

The 3 types fixed inclication inclication angle to meet most courtries solar installation request.

/ 10 degree

/ 20 degree

/ 30 degree

Custom Inclination angle available upon request.

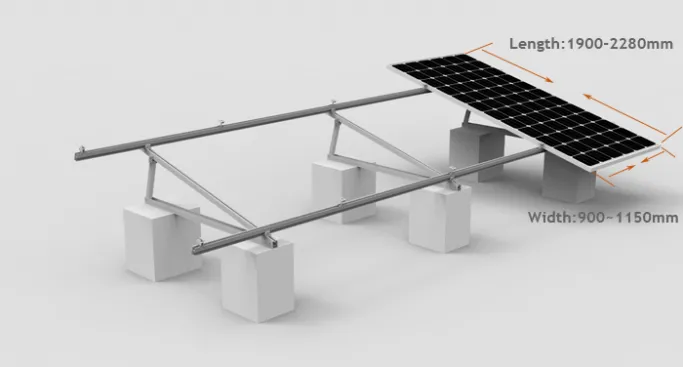

Work for most modules

Full consider the the solar module size for most PV modules, it's suitable for most solar modules installation in the market.

Make sure the max yield of system, any lengths of connector can be made for different layouts.

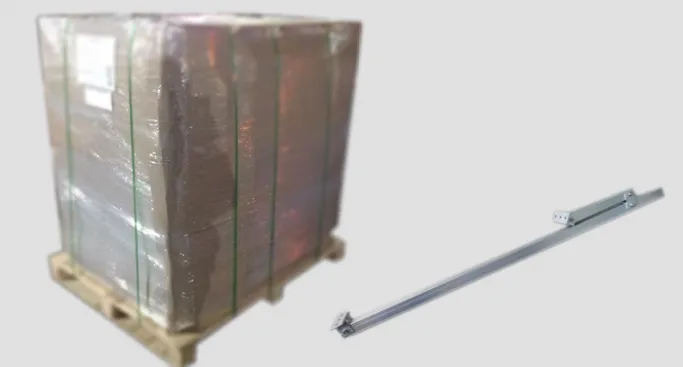

Highly Pre-assembled

The triangular legs are fully-preassembled, and packed on pallets, easy to pick up it.

Easy transporation and fast site installation with less labor cost.

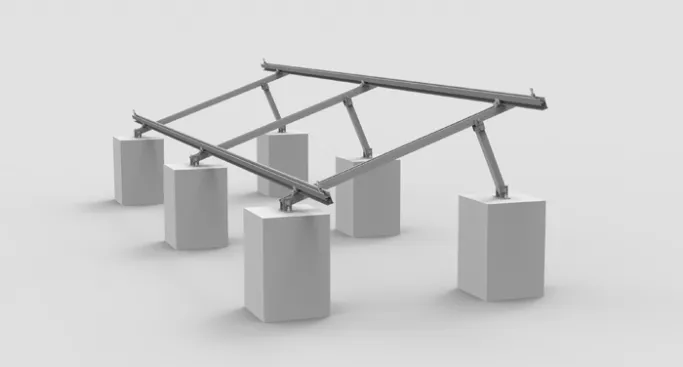

Customized Size Workable

It's flexible customized the Triangular Mount System upon the inclination and the solar module size.

The customized rail length upon arrays length is avaliable.

Components

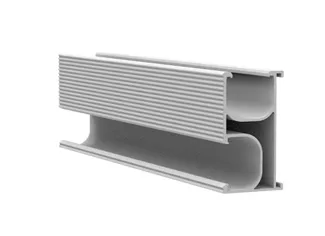

Rail

Universal for pitch roof and flat roof solar installation.

Customized length available.

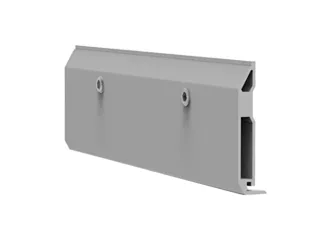

Rail Splice

For connecting 5L rail, double support.

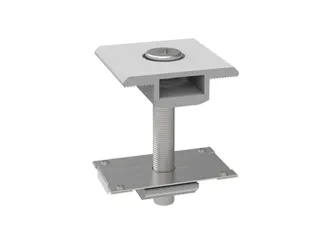

Mid Clamp

Universal for 30-40mm thickness modules.

Self-standing,easy installation.

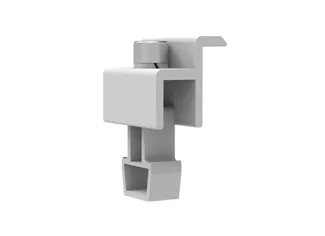

End Clamp

Universal for 30-40mm thickness modules.

Self-standing,easy installation.

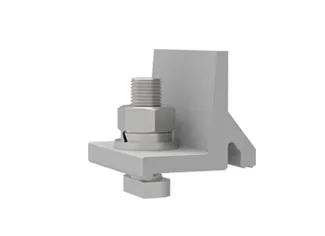

Rail Nut Kits

Easy compatible with rail system

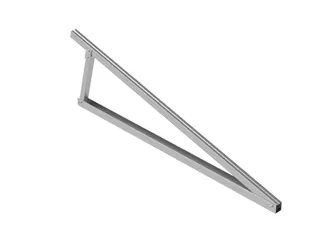

PAT Leg

Fixed inclination angle: 10,20,30 degree.

Highly pre-assembled for fast site installation.

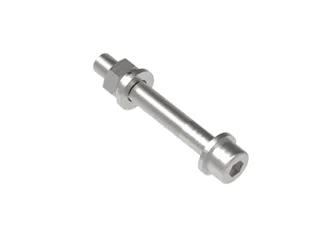

Expand Bolt

Technical Data

Product name	PAT Mount System
Application	Flat concrete roof and small ground
Inclination	Standared or customized
Material	Aluminum 6005 T5
Finish	Anodized clear, average 12um
PV module	Framed
Module size	Small and Big modules
Module orientation	Portrait
Module direction	South , North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
