L Feet Solar Mounting

Features Components Technical Data Video Referencia

WOCHN L feet solar mounting system is designed for any type of trapeziod and corrugated metal sheet roof, this is the most popular and traditional solution for metal sheet roof, because of it's easy and fast installation. About 70% trapezoid metal sheet roof solar plant are use L foot mount system worldwide. Connect rail to achieve the high wind load and snow loading. Side-mounted for quick mounting. It is more reliable and easier solar mounting system for pv-installation.

Features

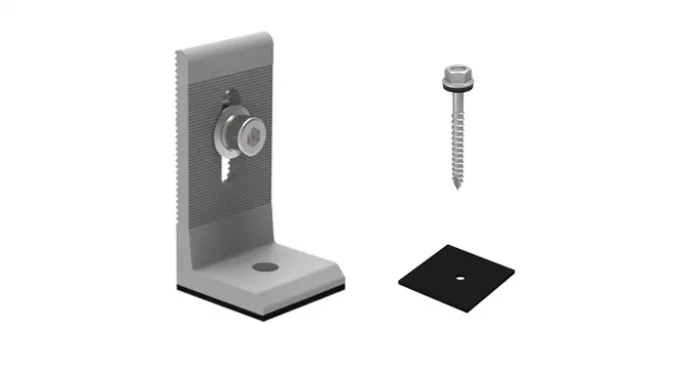

Easy Installation

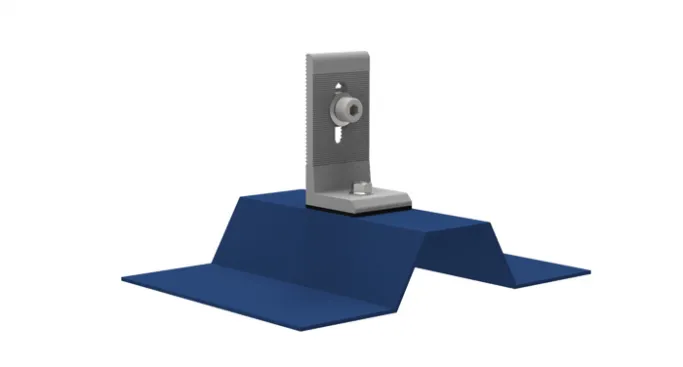

Easy to mount on trapezoid metal sheet, only need one self drilling screw

EPDM pad pre-pasted for water-proof on trapezoid metal sheet roof

Easy to connect and fix solar rail with L feet from L feet side

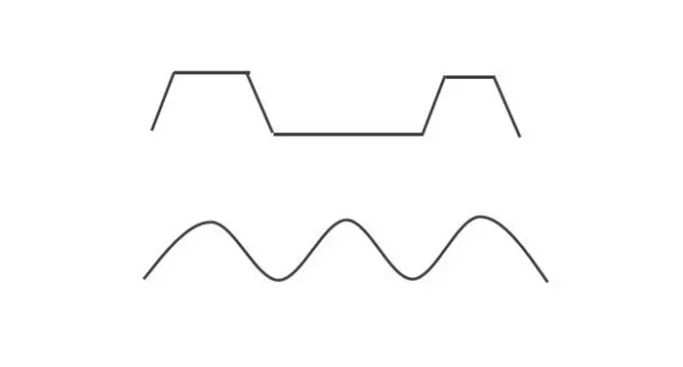

Universal

Suitable for solar installation on all types trapezoid metal sheet roof, corrugated metal sheet roof, sandwich metal sheet roof

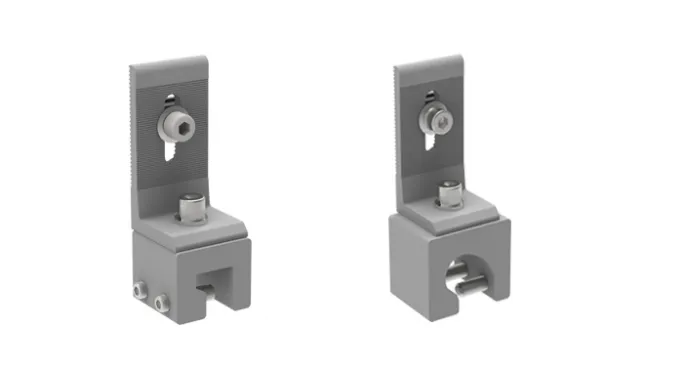

Flexibility

As a good transfer kits on WOCHN standing seam clamps, easy and fast to connect rail system on WOCHN standing seam clamps.

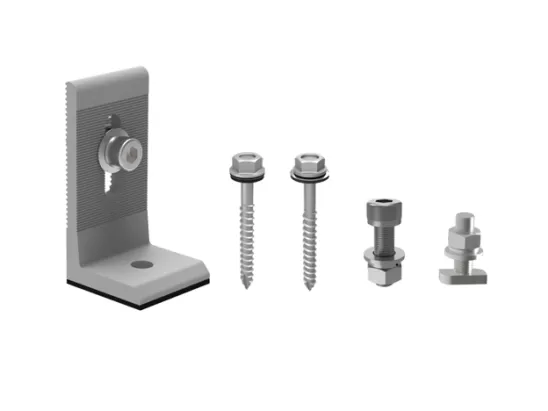

Components

Part Name	Quantity	Specification	Material
L feet	1	403882	Anodized Aluminium 6005-T5
Nut Kits (Include nut,flange,bolt)	1	20	Stainless Steel 304 & AL6005-T5
Wooden screw (Option)	1	M6.3*63/80/100	Carbon steel
Self-drilling screw (Option)	1	M6.3*63/80/100	Stainless Steel SUS410
Hexagon bolt (Option)	1	M8*25	Stainless steel 304
EPDM mat	1	40*38	EPDM

Technical Data

Max pull out load vertical to roof:	7.8KN
Screw tension:	Up to 4NM
Ultimate Tensile Strength：	62
Tensile Yield Strength：	42
Fatigue Strength：	100 Mpa
Shear Modulus：	26.0 Gpa
Shear Strength：	205 Mpa
Hardness, Knoop：	21
Hardness, Vickers：	701
Elongation at Break：	0.008
Modulus of Elasticity：	69.0 Ga

Video

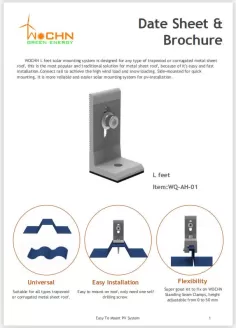

Descargas
