Standing Seam Clamp 03A# Solar Mounting

Features Components Technical Data Video Referencia

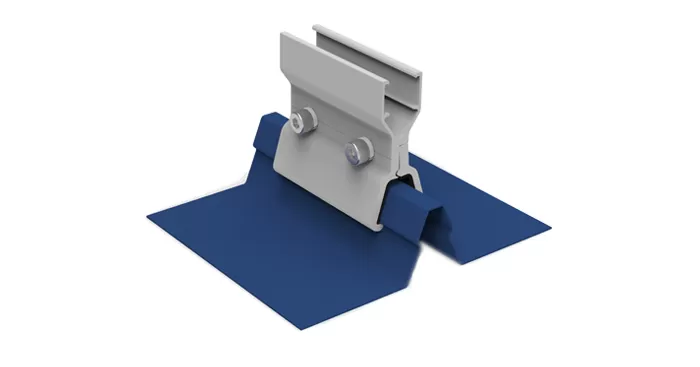

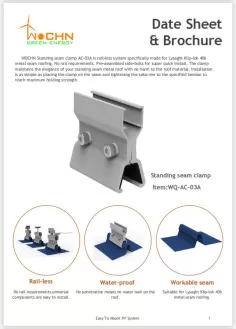

WOCHN Standing seam clamp 03A# is rail-less mount for PV-installation on standing seam metal roof for Lysaght Klip-lok roofing, specifically made for Lysaght Klip-lok 406 metal seam roofing with similar dimension. Rail-less landscape mounting with only 3 components is achieved with Wochn universal clamps. The clamp maintains the elegance of your standing seam roof with no penetrative to the roof material. No penetrative means weatherproof for the roof to ensure the rooftop longer lifespan. And also ensure that must be mounted to the roof with permanence and durability. Minimal number of components and pre-assembled two side-bolts for super quick installation. Installation is as simple as placing the clamp on the seam and tightening the setscrew to the specified tension to reach maximum holding strength.

Features

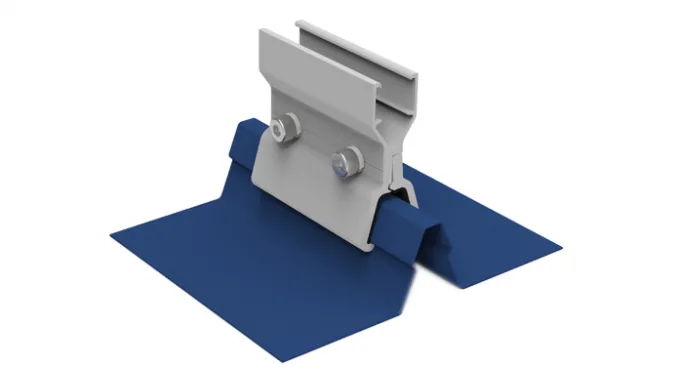

Non-penetrating and Safe

Installation is as simple as placing the clamp on the seam and tightening the setscrew to the specified tension to reach maximum holding strength.

It's weatherproof because of no penetrative, which to guarantee the rooftop longer lifespan.

Height as 90mm, ensure heat spread to make system avoid fire in summer.

OEM Design

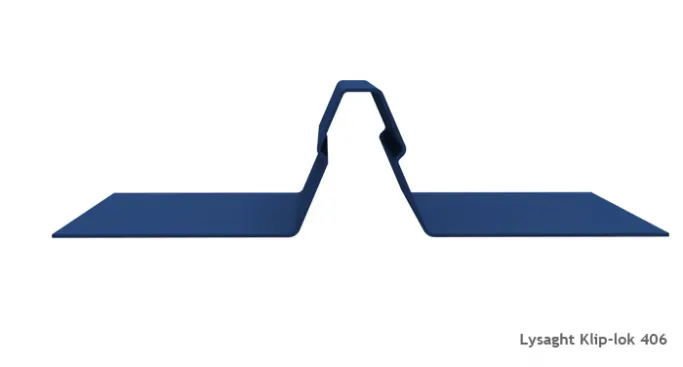

03A# Clamp is for Lysaght Klip-lok 406 metal seam roofing，speed deck ultra and with similar dimension Lysaght Klip-lok standing seam metal roof.

OEM rail-less standing seam clamp designing is worakable, please let us know your standing seam sheet details if you need OEM design.

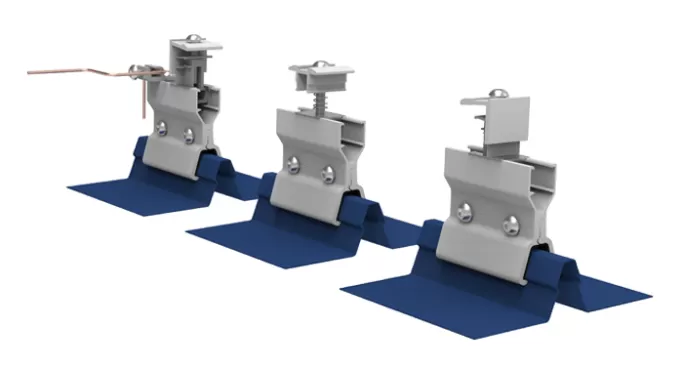

Quick mounting & Cost-effective

Only 4 components required to ensure super quick installation.

Faster to handle of roof top compared with long Rail System.

Easy to transport with less labor cost, logical cost, installation cost.

Components

Part Name	Quantity	Specification	Material
Clamp	1	100*90 mm	Anodized Aluminium 6005-T5
Side screw	2	M8*20mm	SUS304
EPDM mat	1	60*100	EPDM

Technical Data

Max pull out load vertical to roof:	7.8KN
Screw tension:	up to 4NM
Ultimate Tensile Strength：	62
Tensile Yield Strength：	42
Fatigue Strength：	100 Mpa
Shear Modulus：	26.0 Gpa
Shear Strength：	205 Mpa
Hardness, Knoop：	21
Hardness, Vickers：	701
Elongation at Break：	0.80%
Modulus of Elasticity：	69.0 Ga
