    Tile Roof Hook 1# Solar Mounting

WOCHN 1# hook is tile roof hook for solar installation on residential and commercial tiled roofs. It's suitable for all tile roof, like pantiles roofing, slate roofing, plain tiles roofing and concrete roof tile. The hook easy compatible with WOCHN 5L rail system or any rail system to make the system more strong and robust. Simple design to achieve quickest installation. The 1# tiled roof hook is made of high-quality stainless steel. This steel type has a longer lifespan,is highly resistant to corrosion.

Features

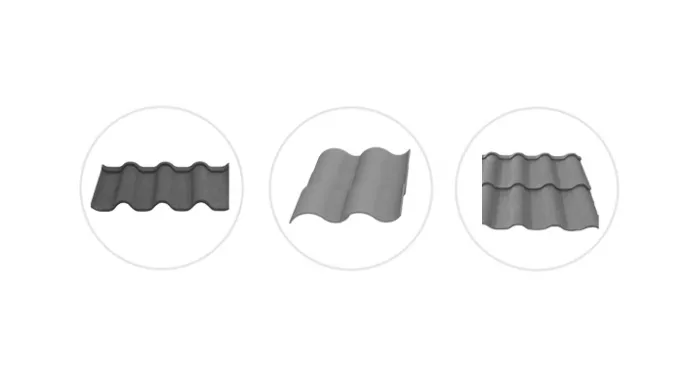

Universal

Universal

Suitable for solar installation on Pantiles roof, Slate roof, Plain tiles roof, Flat tile roof, Spanish tile roof, etc.

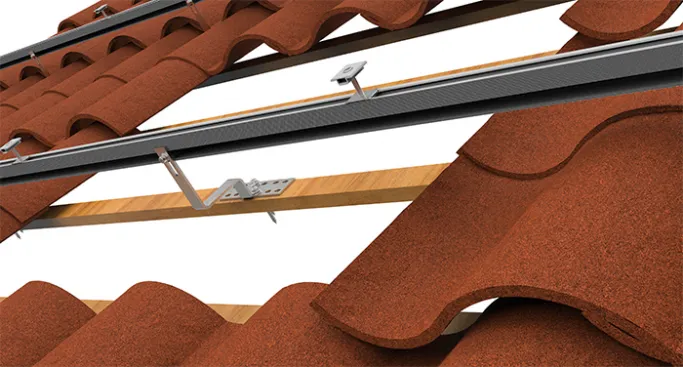

Strong & Quick Mounting

Strong & Quick Mounting

Made by stainless 304, highly anti-rust and big wind and snow load ability.

Simple installation with slotted connections, adjustable hook locations, different width bases and multiple hole patterns.

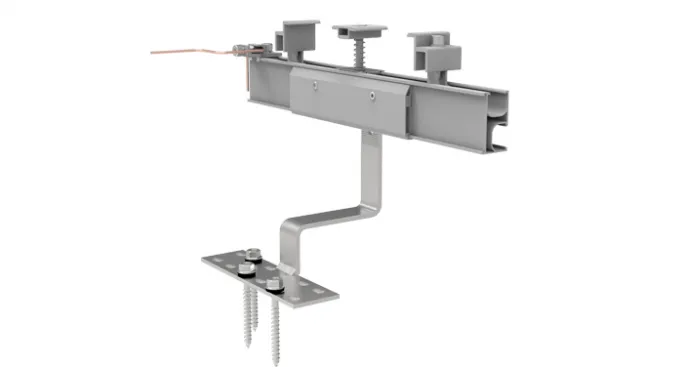

Flexibility

Flexibility

Easy to adjust solar rail system height with range 0 to 50mm, flexibility to meet small adjustment to come to the tilt angles.

12 holes on the base plate for easy to find the roof substructures location and fixing.

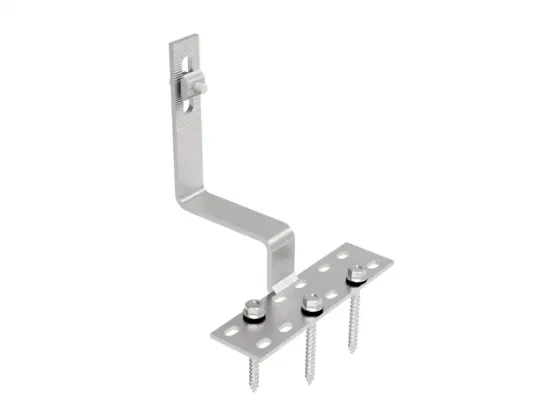

Components

Components
Part NameQuantitySpecificationMaterial
1# hook1180*40*120 mmStainless steel SUS304
Self driling screw3M6.3*80mmStainless steel
Nut Kits15# rail nut kitsAluminium and steel

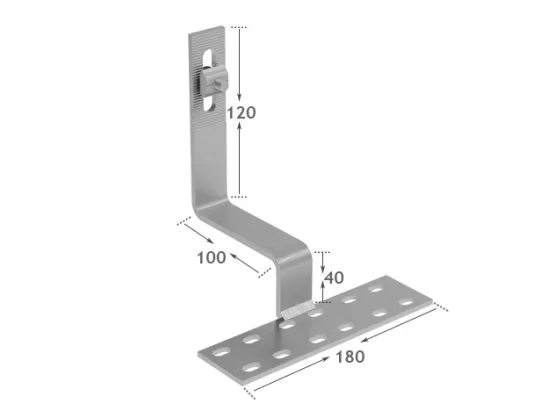

Technical Data

Technical Data
Product nameTile roof hook 1#Mounting System
ApplicationTile roof
InclinationAny roof inclination
MaterialStainless SUS304
FinishNature
PV moduleFramed or Unfreamed
Module sizeSmall and Big modules
Module orientationPortrait and Landscape
Module directionAny direction
Design wind loadingUp to 60m/s
Design snow loadingUp to 1 metre
Roof heightUp to 20 metre
Design StandardEN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
