    APAT Triangular Solar Mounting System

  • APAT Triangular Solar Mounting System

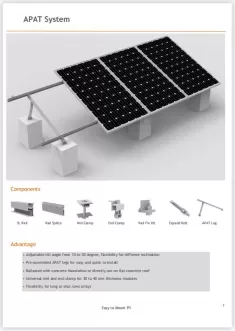

    APAT Triangular Solar Mounting System

WOCHN APAT Triangular Solar Mounting System is for portriat solar installation on flat roof. It is easy and fast installation of PV modules on flat roofs and surface.The triangular design provides a stable, reliable and sturdy base for the system. It's versatile of the application which ballasted with a concrete foundation or directly connected with flat concrete roofs. This system supports a wide range for adjustable angle through to adjust the distance between front base and back base of the leg to achieve the tilt adjustable. The adjustable angle range is 10-60° available. The module arrays placed more longer, the price more cost -effective. And also resisting the extreme wind load and snow forces experienced over a rooftop lifespan. Every component in the system is made with aluminum and stainless steel to ensure complete corrosion resistance and longer lifespan.

Features

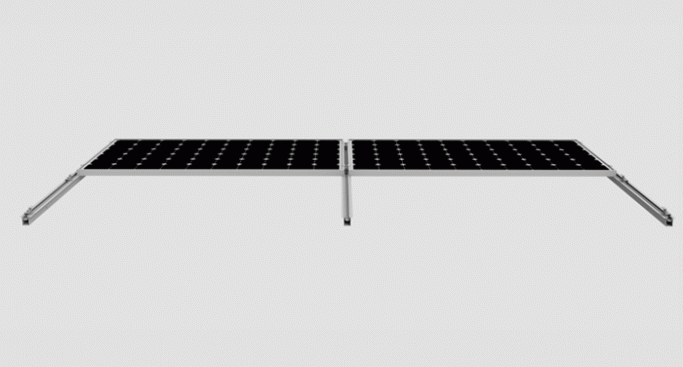

Universal

Universal

WOCHN APAT Triangular Mount System fit multitude of different flat concrete roof or small ground site PV installations with concrete foundations, the professional design terminate future temporary site fabricating structures of using aluminum profile.

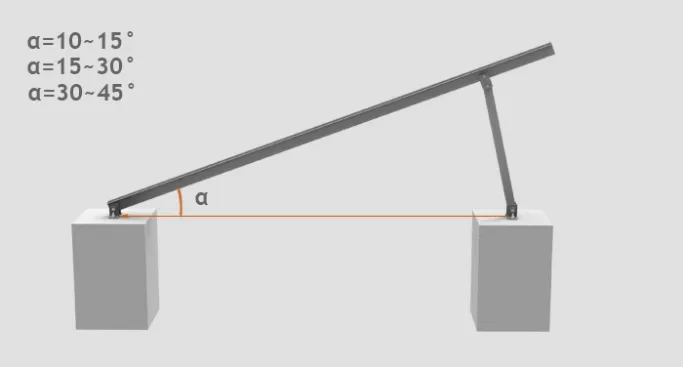

Inclination Angle Adjustable

Inclination Angle Adjustable

Easy to adjust the distance between front base and back base to reach the tilt adjustable

/10-15 degree

/15-30 degree

/ 30-45 degree

Custom Inclination angle available upon request

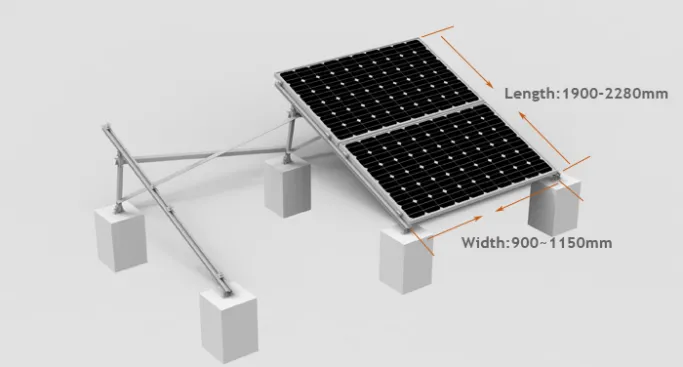

Workable for most modules

Workable for most modules

Full consider the the solar module size for most PV modules, it's suitable for most solar modules installation in the market.

Make sure the max yield of system, any lengths of connector can be made for different layouts.

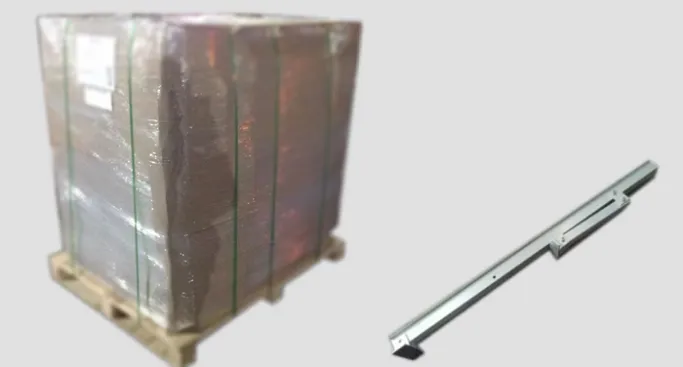

Highly Pre-assembled

Highly Pre-assembled

The triangular legs are fully-preassembled, and packed on pallets, easy to pick up it.

Easy transporation and fast site installation with less labor cost.

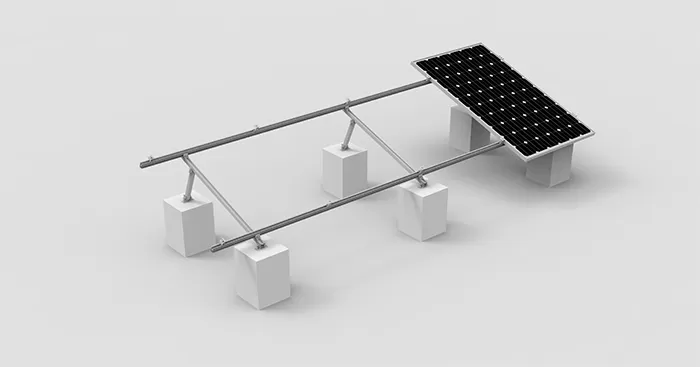

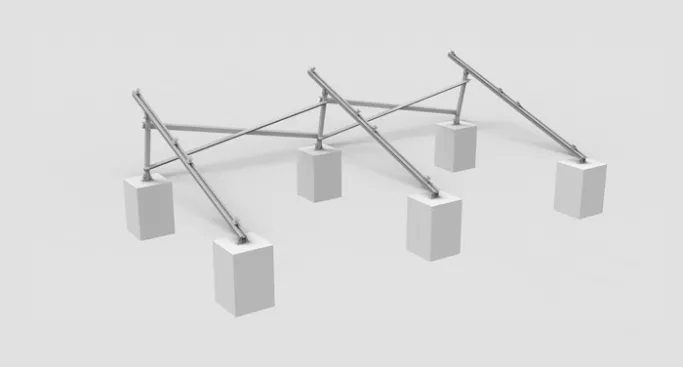

Customized Size Workable

Customized Size Workable

It's flexible customized the Triangular Mount System upon the inclination and the solar module size.

The customized rail length upon arrays length is avaliable.

Components

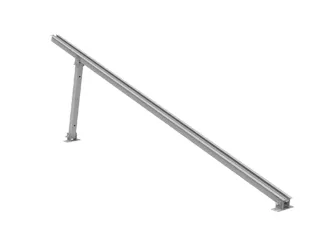

ATV Leg

ATV Leg

Easy to adjust the tilt angle: 10-15, 15-30, 30-45 degree.

Rail less due to co-beam design.

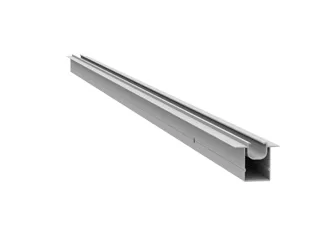

Beam

Beam

Beam for ATV Leg.

Co-beam to achieve rail free.

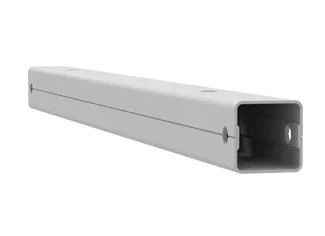

Tube

Tube

Support the ATV leg

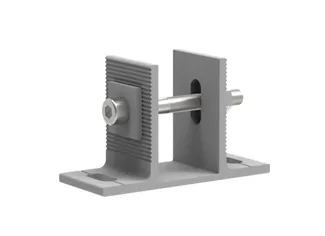

Base

Base

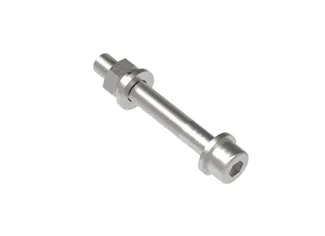

Expand bolt

Expand bolt

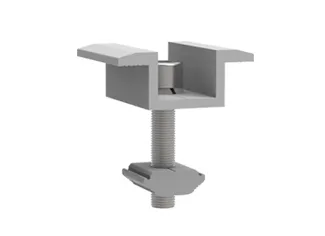

Mid clamp

Mid clamp

Universal for fix module of thickness 30-40mm.

Self-standing,easy installation.

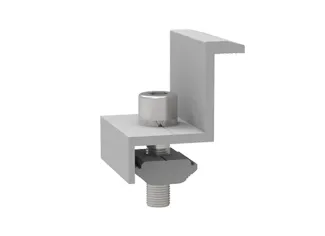

End clamp

End clamp

Universal for fix module of thickness 30-40mm.

Self-standing,easy installation.

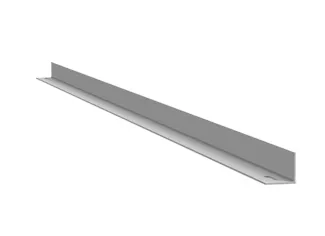

Strength kit 35

Strength kit 35

To make the system more strong

Technical Data

Product nameATV Mount System
ApplicationFlat concrete roof and small ground
InclinationStandared or customized
MaterialAluminum  6005 T5
FinishAnodized clear, average 12um
PV moduleFramed
Module sizeSmall and Big modules
Module orientationLandscape
Module directionSouth , North
Design wind loadingUp to 60m/s
Design snow loadingUp to 1 metre
Roof heightUp to 20 metre
Design StandardEN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV
