Standing Seam Clamp 05# Solar Mounting

Features Components Technical Data Video Referencia

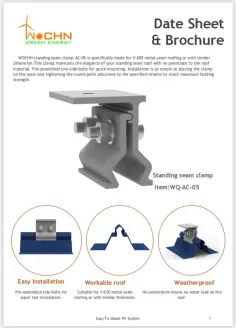

WOCHN standing seam clamp AC-05 is rail-based clamp for solar installation on standing seam metal roof. It is specifically made for V-650 metal seam roofing or with similar dimension.This clamp maintains the elegance of your standing seam roof with no penetrate to the roof material. No penetrative means waterproof for the roof to ensure the rooftop longer lifespan.And also ensure that must be mounted to the roof with permanence and durability. Pre-assembled two side-bolts for quick mounting. Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension to reach maximum holding strength. Rigorous load testing to ensure the longer lifespan and reliable.

Features

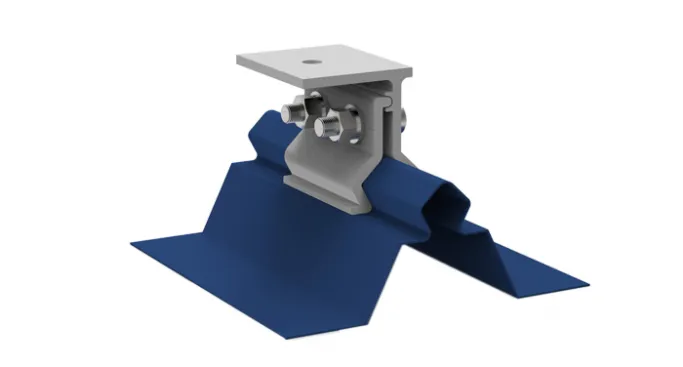

Non-penetrating and Safe

Installation is as simple as placing the clamp on the seam and tightening the setscrew to the specified tension to reach maximum holding strength.

It's weatherproof because of no penetrative, which to guarantee the rooftop longer lifespan.

OEM Design

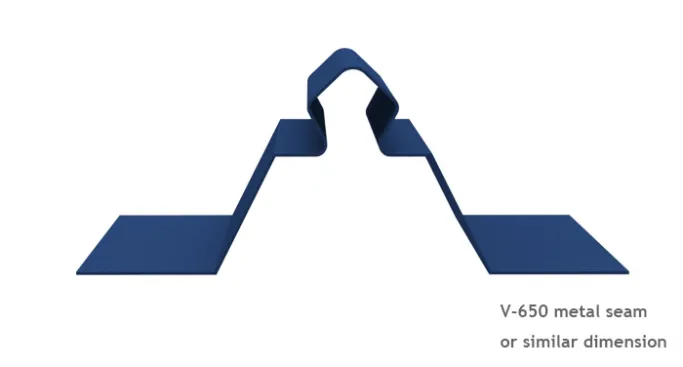

05# Clamp is for V-650 metal seam roofing，speed deck ultra and with similar dimension standing seam metal roof.

OEM standing seam clamp designing is worakable, please let us know your standing seam sheet details if you need OEM design.

Flexibility

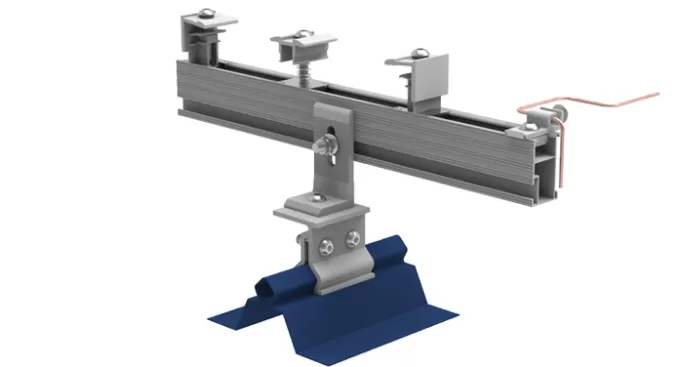

Easy compatible with WOCHN L feet mount system to make both portrait and landscape installation are avaliable.

Easy to adjust solar rail system height with range 0 to 50mm, flexibility to meet small adjustment to come to the tilt angles.

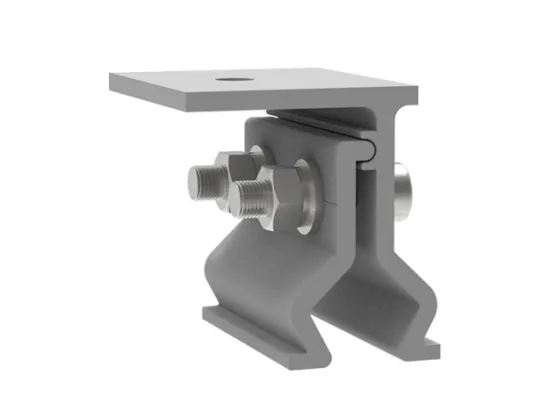

Components

Part Name	Quantity	Specification	Material
Clamp	1	55*45mm	Anodized Aluminium 6005-T5
Top screw	1	M8*20mm	SUS304
Side screw	2	M8*25mm	SUS304

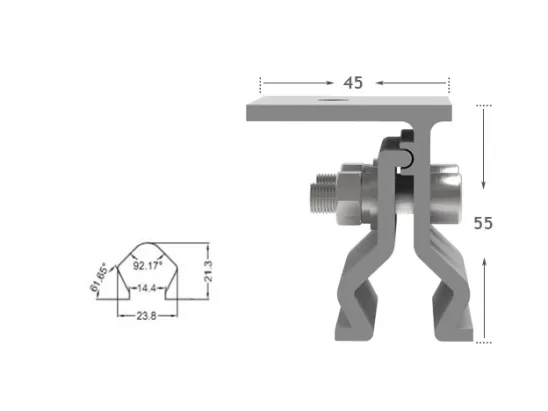

Technical Data

Max pull out load vertical to roof:	7.8KN
Screw tension:	up to 4NM
Ultimate Tensile Strength：	62
Tensile Yield Strength：	42
Fatigue Strength：	100 Mpa
Shear Modulus：	26.0 Gpa
Shear Strength：	205 Mpa
Hardness, Knoop：	21
Hardness, Vickers：	701
Elongation at Break：	0.80%
Modulus of Elasticity：	69.0 Ga
