Hanger Bolt Solar Mounting

Features Components Technical Data Video Referencia

WOCHN Hanger bolt is versatile component for pv-installation. It is suitable for almost all types of roofing with wooden substructures. Including trapezoidal sheet metal,corrugated sheet metal, corrugated fiber cement and all tile roofs. It’s impressive load capacities make the system reliable and robust. Using the universal flat plate connection fitted to the hanger bolt, you can simply compatible with any rail systems. And the EPDM rubber on the hanger bolt ensures a 100% watertight seal of the roof. Available in various size for your needs.

Features

Widely Application Range

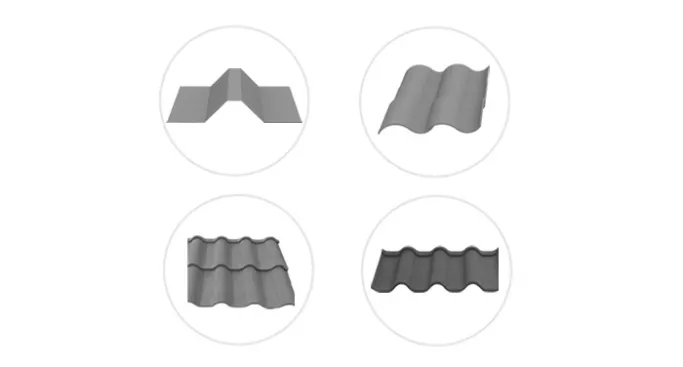

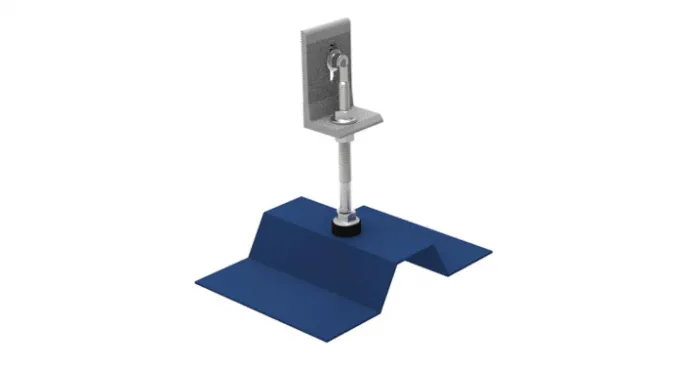

Suitable for solar installation on all types of roofing with wooden substructures, including trapezoidal sheet metal,corrugated sheet metal, corrugated fiber cement, sandwich metal sheets and all tile roofs.

Durable

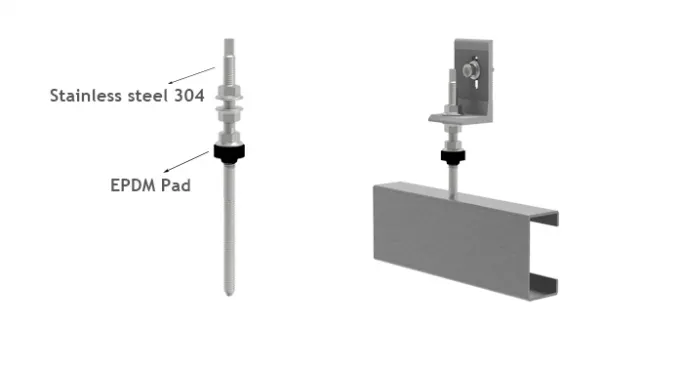

Made by stainless, highly anti-rust

100% weatherproof with EPDM rubber proven sealing systems

No additional holes in the roof cladding

Strong wind and snow loading ability for hurricane area and big snow area

Extremely safe fastening with direct embedment into the substructures

Versatility

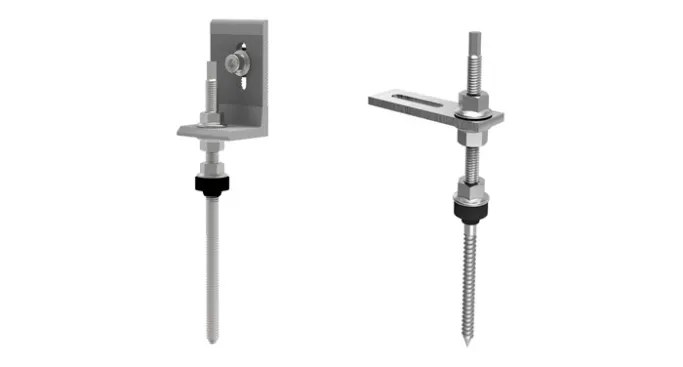

Match adapter plates or off-set L feet, can simply compatible with WOCHN or any rail systems in the market

Easy to adjust solar rail system height base on roof tilt requirements.

Components

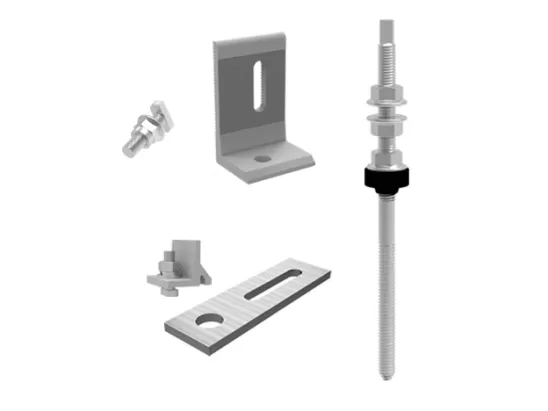

Part Name	Quantity	Specification	Material

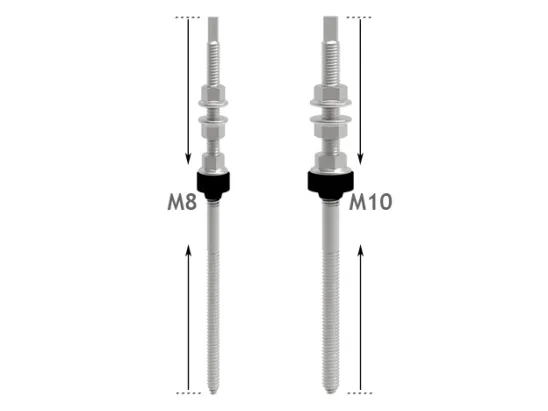

Hanger bolt	1	M8200 or M10200mm	Stainless Steel 304
Off-Set L feet (Option)	1	40*85 mm	Anodized Aluminium 6005-T5
Adapter plates (Option)	1	30*80 mm	Stainless Steel
Flange Nut	3	M8 or M10	SUS304
Rail nut kits	1	WOCHN rial nut kits	Anodized Aluminium 6005-T5

Technical Data

Product name	Hanger Bolt Mounting System
Application	Pitch roof with wooden substructures
Inclination	Any roof inclination
Material	Stainless SUS304
Finish	Nature
PV module	Framed or Unfreamed
Module size	Small and Big modules
Module orientation	Portrait and Landscape
Module direction	Any direction
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170,UL1703,JIS C 8955:2011,CE,TUV

Video

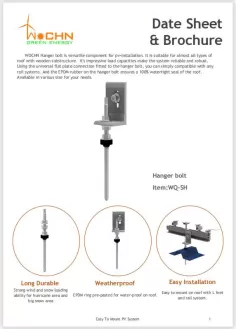

Descargas

Referencia

Más

Etiquetas: Montaje solar de techo de chapa
