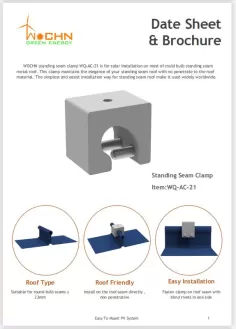

Wochn standing seam clamp AC-21 is rail-based clamp to standing seam metal roof for solar installation. It's commonly used on rould bulb standing seam metal roof, as: Kalzip, Bemo, Aluform, Euroseam®, Kingspan metal seam roofing. This clamp maintains the beautiful appearance of your standing seam roof with no harm to the roof material. No harm equals no penetrative that means weatherproof for the roof to ensure the rooftop longer lifespan And also ensure that must be mounted to the roof with permanence and durability. Pre-assembled two set-screw for fast installation. Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension to reach maximum holding strength. Rigorous load testing to ensure the longer lifespan and reliable.

Features

Universality

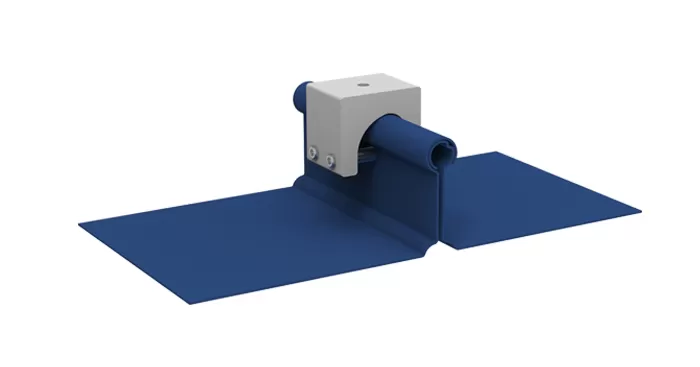

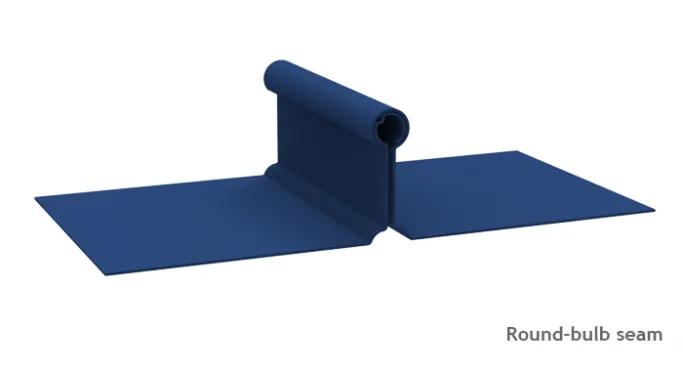

Suitable for rould bulb standing seam metal roof that the rould seam width less than 23mm. Like: Kalzip, Bemo, Aluform, Euroseam®, Kingspan metal seam roofing.

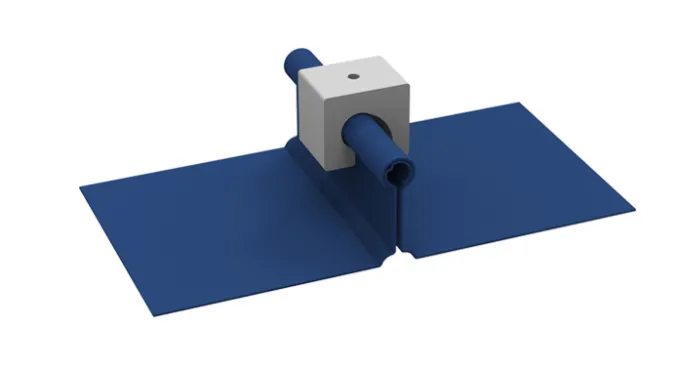

Non-penetrative, robust and waterproof

Installation is as simple as placing the clamp on the seam and tightening the round-point setscrews to the specified tension to reach maximum holding strength.

No penetrative means weatherproof for the roof to ensure the rooftop longer lifespan.

Flexibility

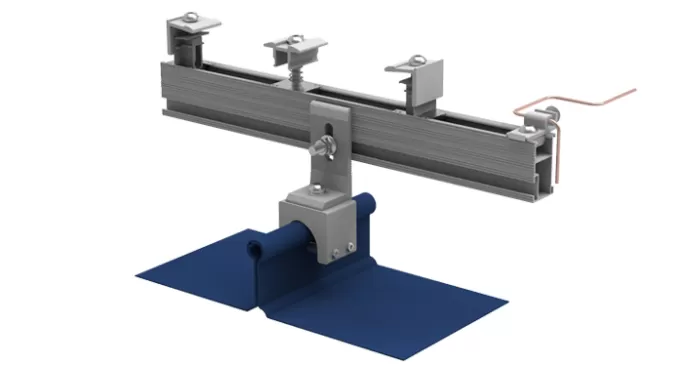

Easy compatible with WOCHN L feet solar mounting system to make standing seam clamp mount system more strong.

Longer lifespan and reliable.

Components

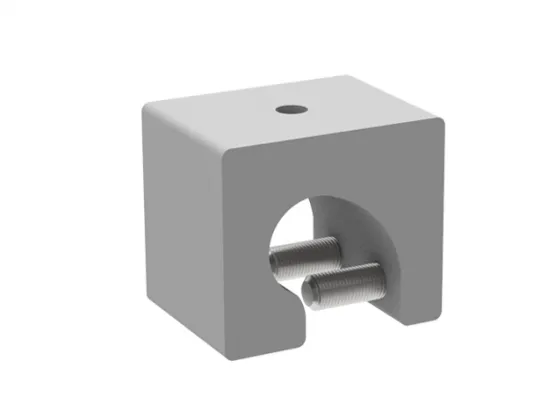

Part Name	Quantity	Specification	Material
Clamp	1	554040mm	Anodized Aluminium 6005-T5
Top screw	1	M8*20mm	SUS304
Side screw	2	M8*25mm	SUS304

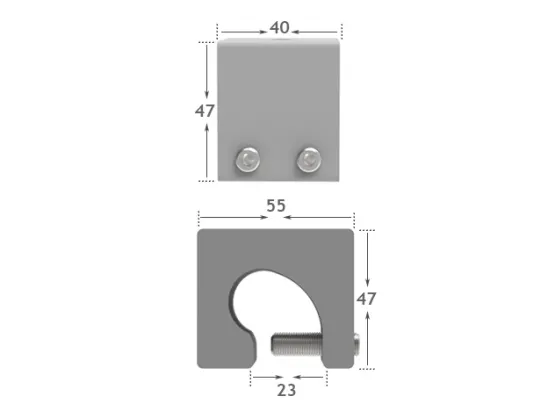

Technical Data

Max pull out load vertical to roof:	7.8KN
Screw tension:	up to 4NM
Ultimate Tensile Strength：	62
Tensile Yield Strength：	42
Fatigue Strength：	100 Mpa
Shear Modulus：	26.0 Gpa
Shear Strength：	205 Mpa
Hardness, Knoop：	21
Hardness, Vickers：	701
Elongation at Break：	0.80%
Modulus of Elasticity：	69.0 Ga
