ECO N/S Solar Mounting System

Features Technical Data Video Referencia

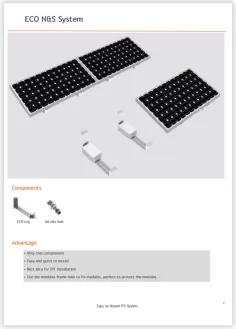

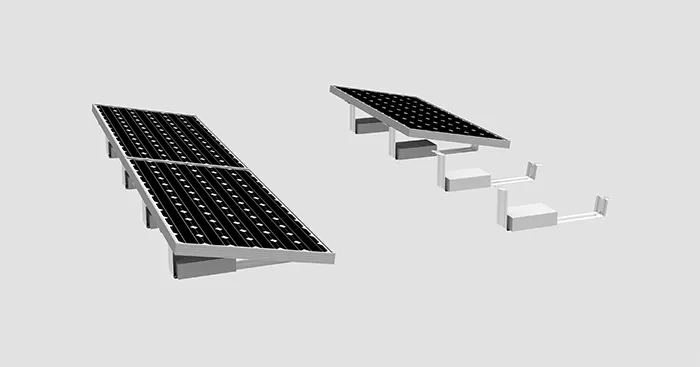

WOCHN ECO N/S Ballast mount system is a mounting system for installing PV modules on flat roofs to face south or north. It is used on buildings whose roof is made of bitumen membrane, EPDM/TPO/PVC membrane roofing and green/gravel roofs. This system with low load and no perforation of the rooftop, the installation of panels is facilitated and integrity of the roof preserved. And more suitable for residential installation because it’s very simple and easy to stock. Whole system is used minimum components for flat roof installation, which consists of just one kits.It’s time-saving and low labor cost for installers due to uses the minimal components to install. Only need lock the panel frame with screw on the ECO leg. The leg process uses 100% aluminium. This metal has many advantages including being light,strong, recyclable and highly corrosion resistance.

Features

Flexible Application

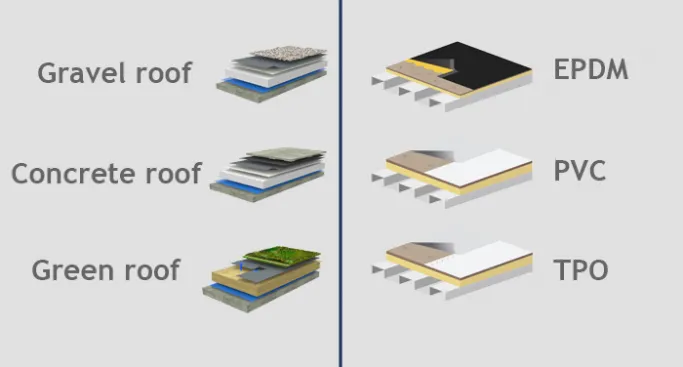

Versatile application on the flat roof,which made of bitumen, EPDM,TPO,PVC membrane roofs and green or gravel flat roofs.

The best DIY idea for flat roof solar installation.

The standard inclication angle including: 10 /20/30 deg.

Fastest Installation

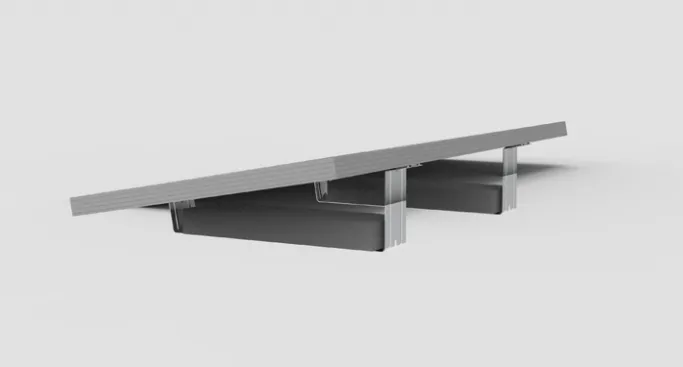

2 ECO legs to support one panel, super fast installation and time-saving.

Only need to lock panel frame with 4 screws on 2 ECO legs.

Build to Last

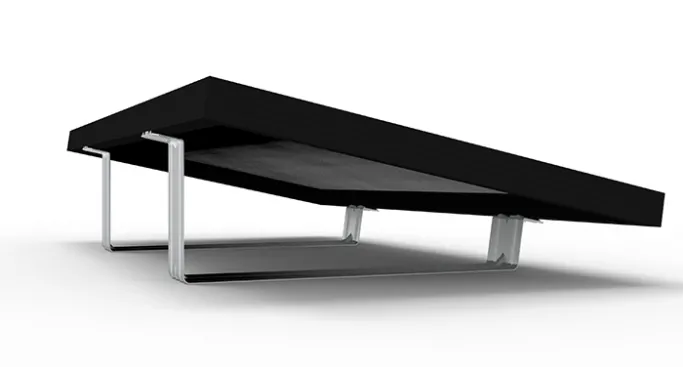

The ECO leg process used 100% aluminium 1070. This material has many advantages including being light, strong, recylable and highly corrosion resistance.

High-quality material ensure longer lifespan and durable.

Workable for solar Modules in wide range

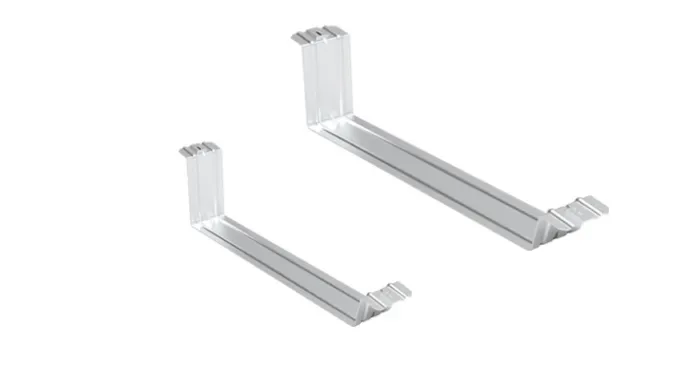

WOCHN own 4 serious ECO Legs to meet different solar modules specification installation requirement:

WQ-EC0-808: For solar modules width 800-900mm

WQ-EC0-995: For solar modules width 901-1000mm

WQ-EC0-1050: For solar modules width 1001-1050mm

WQ-EC0-1109: For solar modules width 1051 -1150mm

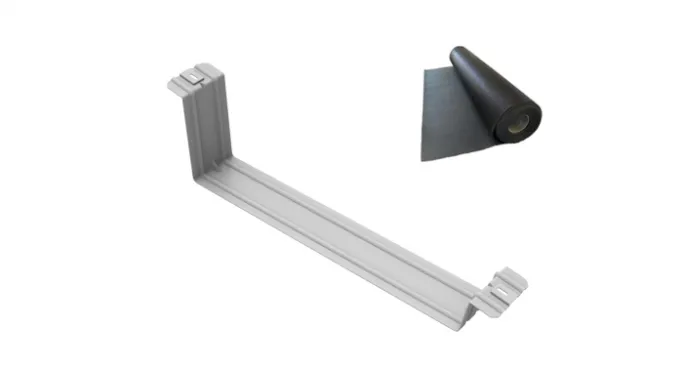

Non-penetrative & Low Ballast Load

Without perforation of the rooftop, the installation of panels is facilitated and integrity of the roof preserved.

The EPDM-mat with rubber granulates for clients option to protect roof surface and increase the coefficient of friction to decline ballast weight.

Components

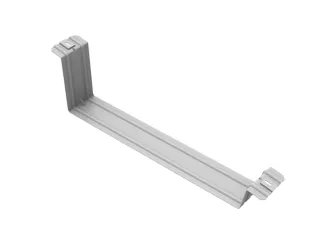

ECO Leg

2 screws to intsall, super and time-saving.

4 types suitable for different solar modules specification.

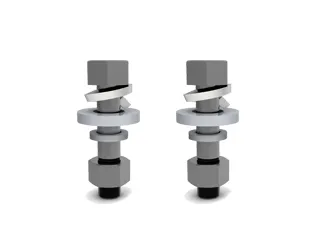

Bolts

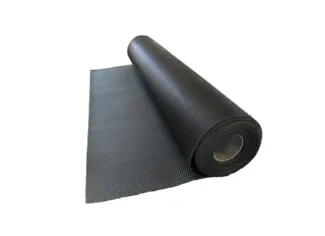

EPDM mat

EPDM mat used to protect TPO/PVC roof.

High coefficients of friction to reduce ballast.

Technical Data

Product name	ECO N/S Mount System
Application	Flat EPDM, TPO, PVC, Concrete roofs
Inclination	Standared or customized
Material	Aluminum 1070
Finish	Nature
PV module	Framed
Module size	Small and Big modules
Module orientation	Landscape
Module direction	South, North
Design wind loading	Up to 60m/s
Design snow loading	Up to 1 metre
Roof height	Up to 20 metre
Design Standard	EN1991, AS1170, UL1703, JIS C 8955:2011, CE, TUV
